扶蔗器仿形Terrain-following crop lifters
探索左右扶蔗器适应局部高低变化的机构布局，兼顾导入甘蔗与地面间隙。Explore left and right crop-lifter arrangements that respond to local ground variation while guiding cane and maintaining clearance.
GAKI DESIGN ARCHIVE · 2026-09-21
自动仿地形甘蔗收割机
Automatic Terrain-Following Sugarcane Harvester
设计概念 / Design conceptGAKI-TFH-001收获机械 / Harvesting machinery
以拖拉机为基础，探索扶蔗器与收割刀台随地形起伏调整的整杆收获方案，结合后部集蔗与折叠机构。A tractor-based whole-stalk harvesting concept combining terrain-following crop lifters and a base-cutting header with rear cane collection and folding mechanisms.
GAKI · AI辅助设计效果图 / AI-assisted design illustration
设计思路Design intent
本方案围绕甘蔗收割过程中的扶蔗、贴地切割和整杆收集展开。设计目标是让扶蔗器与收割刀台根据局部地形变化调整位置，并兼顾后部装置的连接、升降和运输收拢。以下六幅图展示同一产品的整体布局与局部构想。This concept explores crop lifting, ground-level cutting and whole-stalk collection. The design aims to let the crop lifters and cutting header respond to local terrain while accommodating rear-module attachment, lifting and stowage. Six views present the overall arrangement and selected details.
02
收割刀台仿形Terrain-following cutting header
围绕刀台高度与姿态调整展开设计，以改善起伏地面上的切割适应性；控制逻辑与切割效果待验证。Develop header height and attitude adjustment for uneven ground; control logic and cutting performance remain to be validated.
03
后部集蔗与折叠Rear collection and folding
后部设置长形集蔗装置，展示液压连接和向上折叠的构想，后续需核对满载受力及运输尺寸。A long rear collection module is shown with hydraulic connections and an upward-folding concept. Loaded forces and transport dimensions need verification.
六个视角，展开设计细节Explore the design in detail
点击放大 / Select an image to enlarge

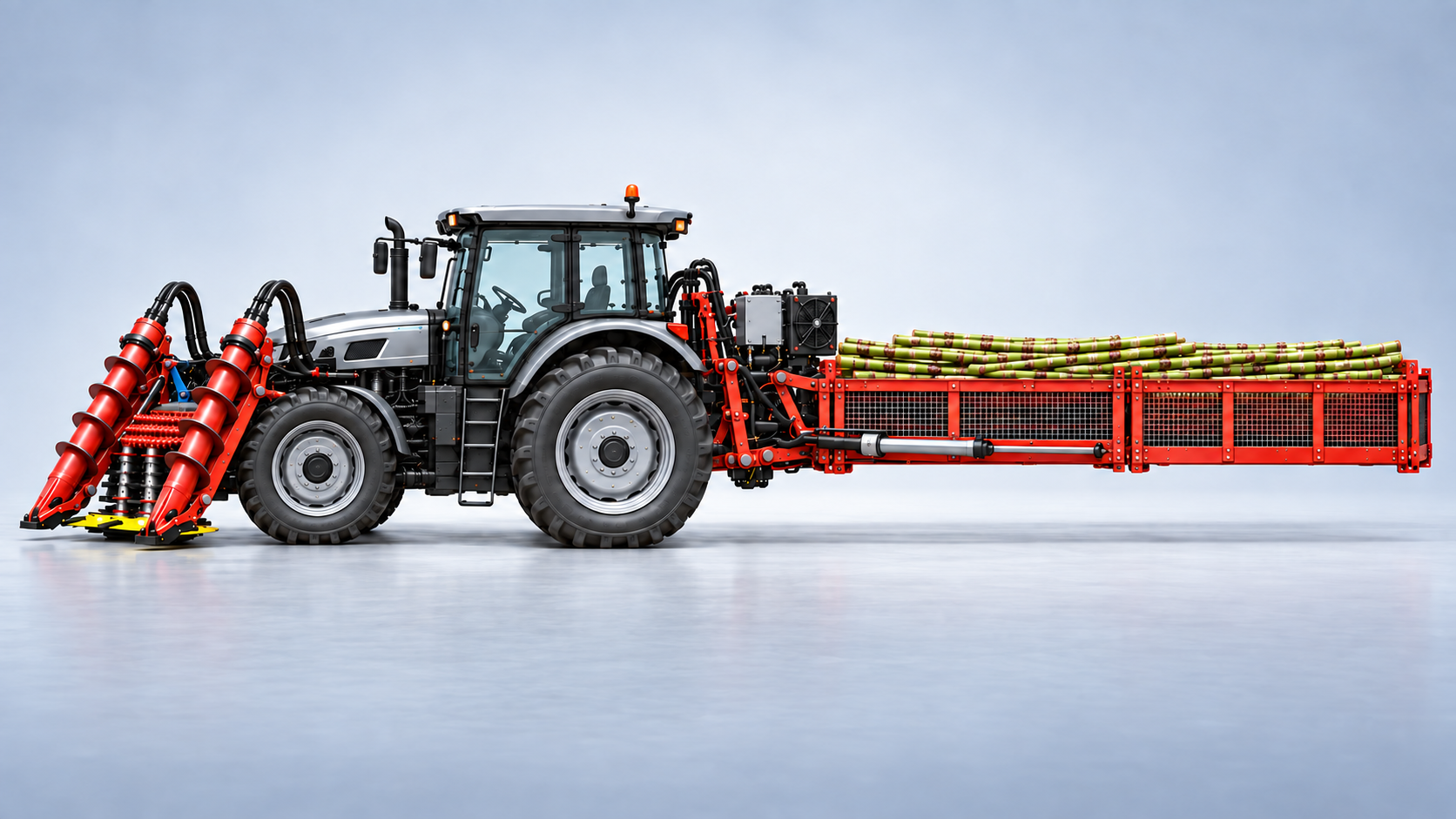

放大 / Enlarge ↗展示拖拉机、前置扶蔗收割部件与后部集蔗装置的相对位置。The relative placement of the tractor, front crop-lifting and cutting units, and rear collection module.

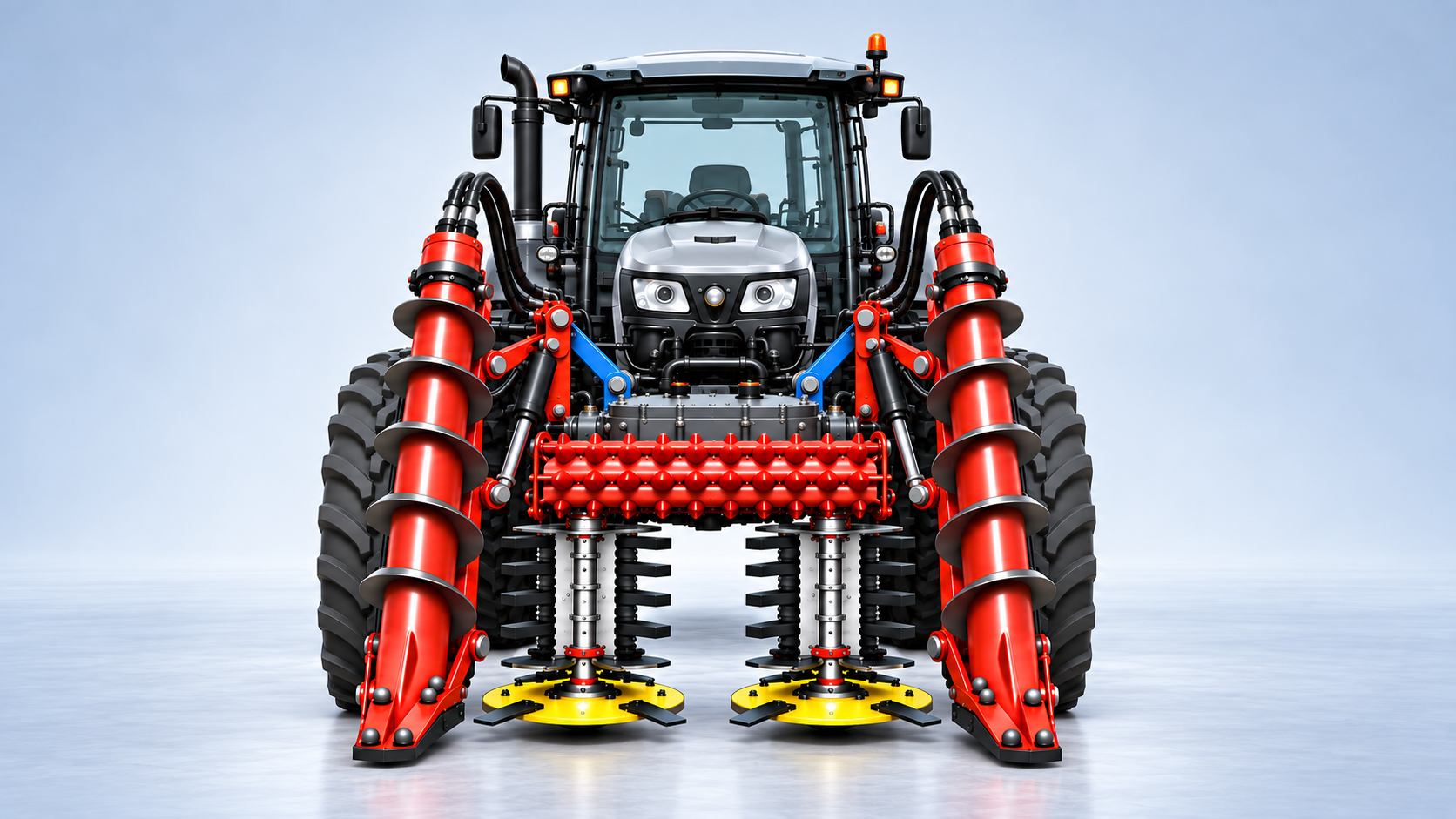

放大 / Enlarge ↗正面展示左右螺旋扶蔗器、喂入构件与底部切割刀盘的设计构想。Front view of the spiral crop lifters, feed components and base-cutting discs.

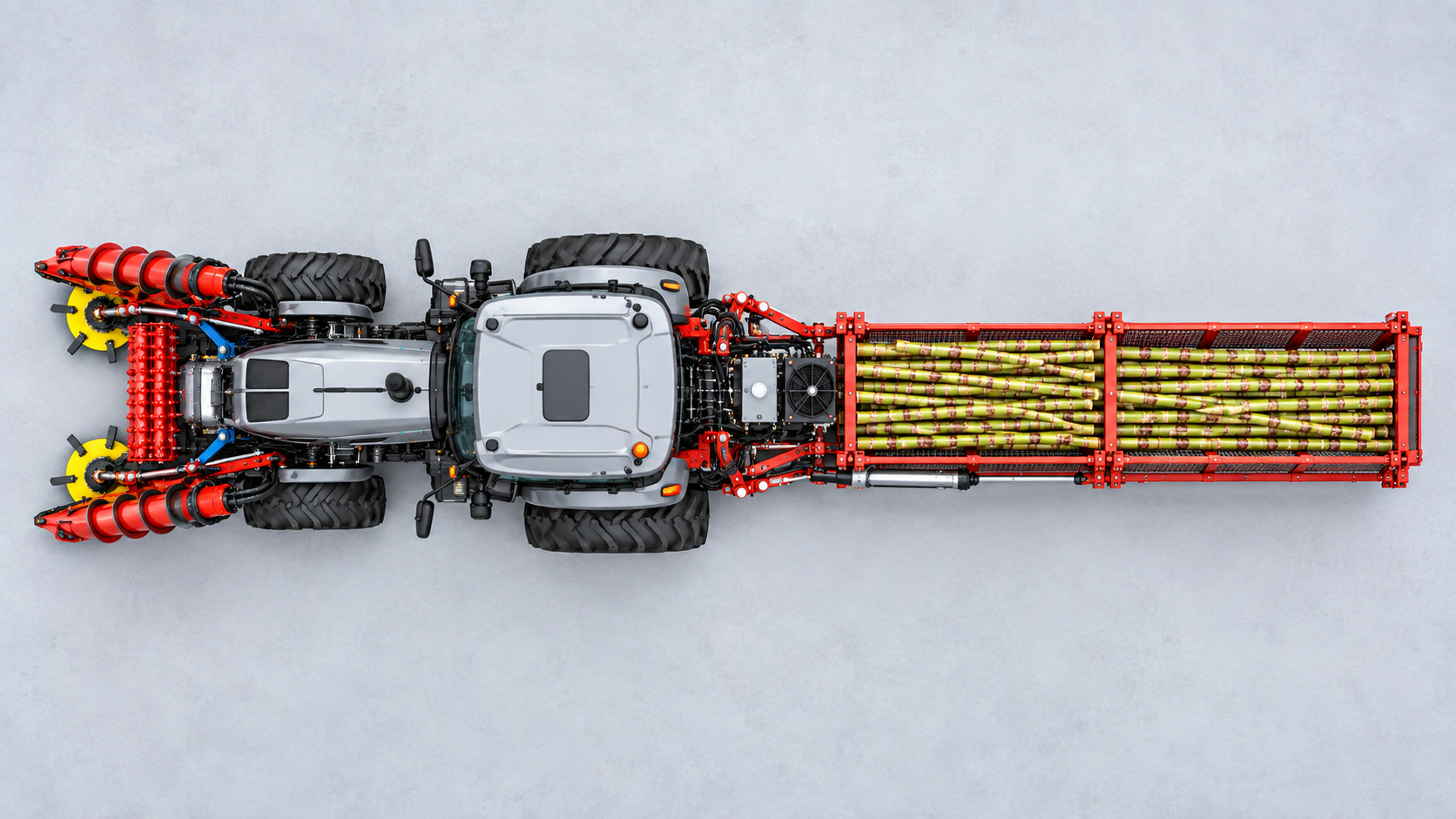

放大 / Enlarge ↗从上方观察前部工作装置、拖拉机与后部集蔗装置的纵向布置。A top view of the longitudinal arrangement of the front working unit, tractor and rear collection module.

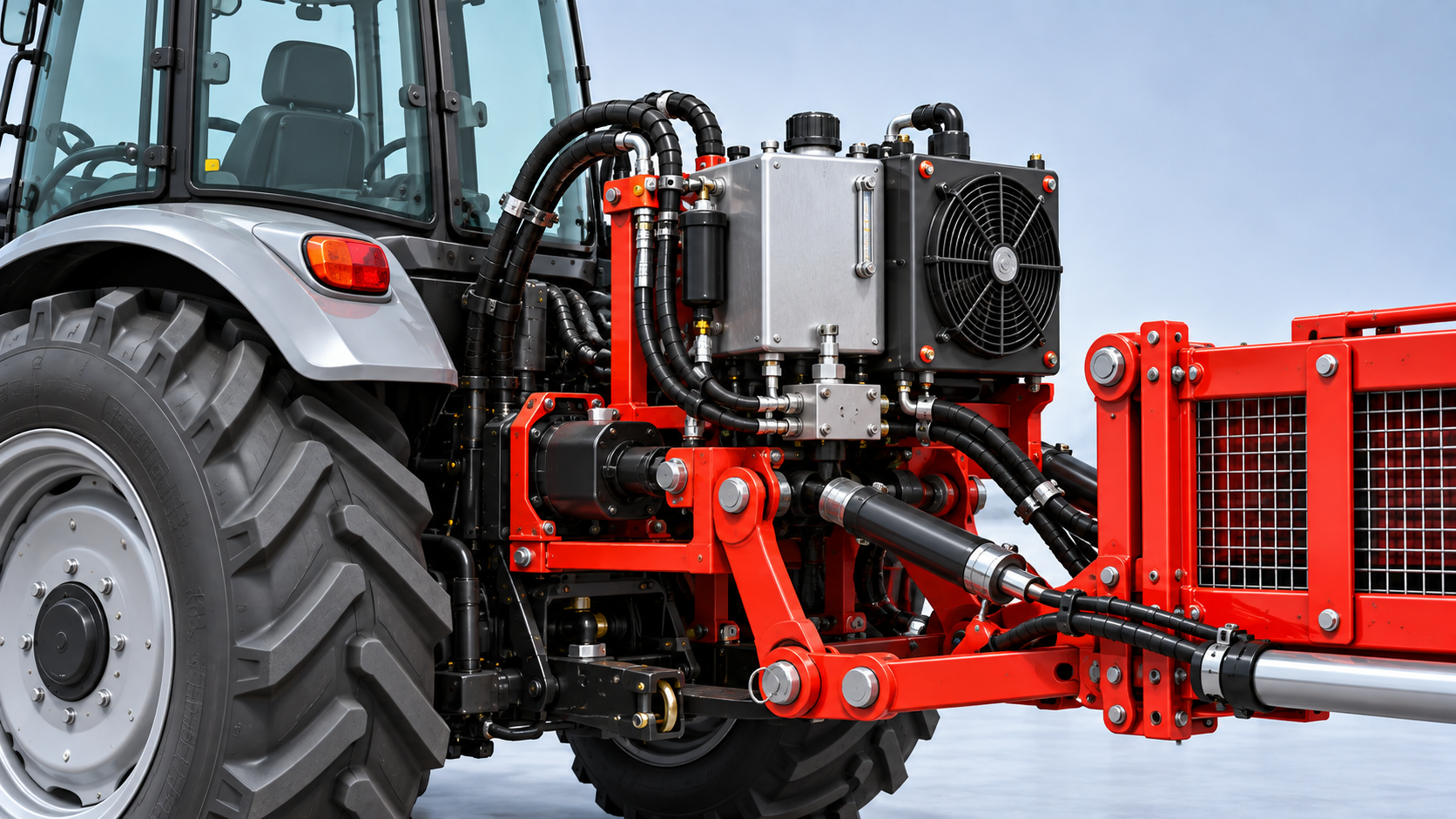

放大 / Enlarge ↗展示后部液压单元、管路、连接支架及油缸的概念布局。Concept layout of the rear hydraulic unit, hoses, attachment frame and cylinders.

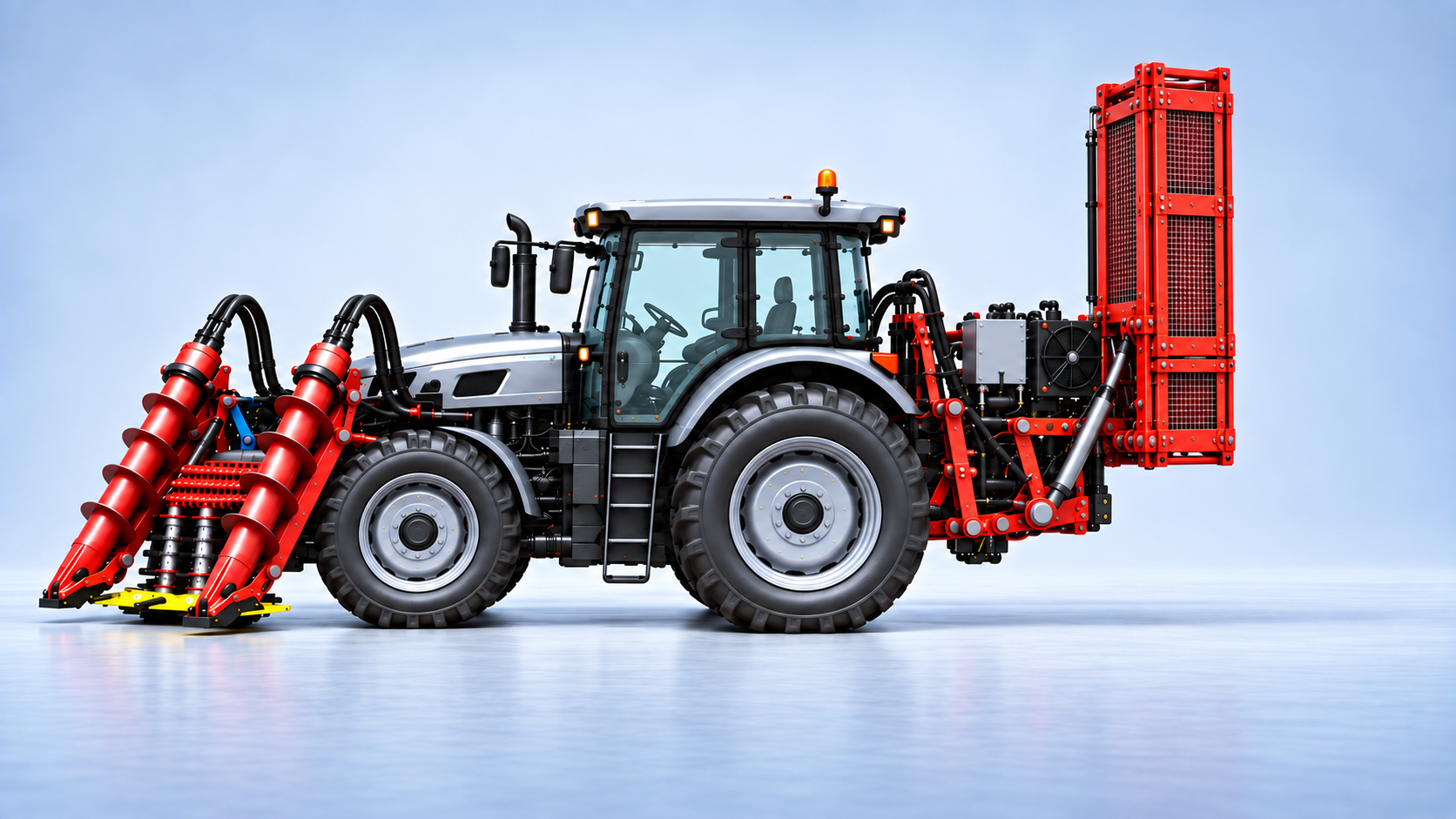

放大 / Enlarge ↗展示集蔗装置向上收拢的概念状态，运输锁止与整机稳定性待校核。The rear collection module shown in an upward-folded concept position; transport locking and stability require assessment.

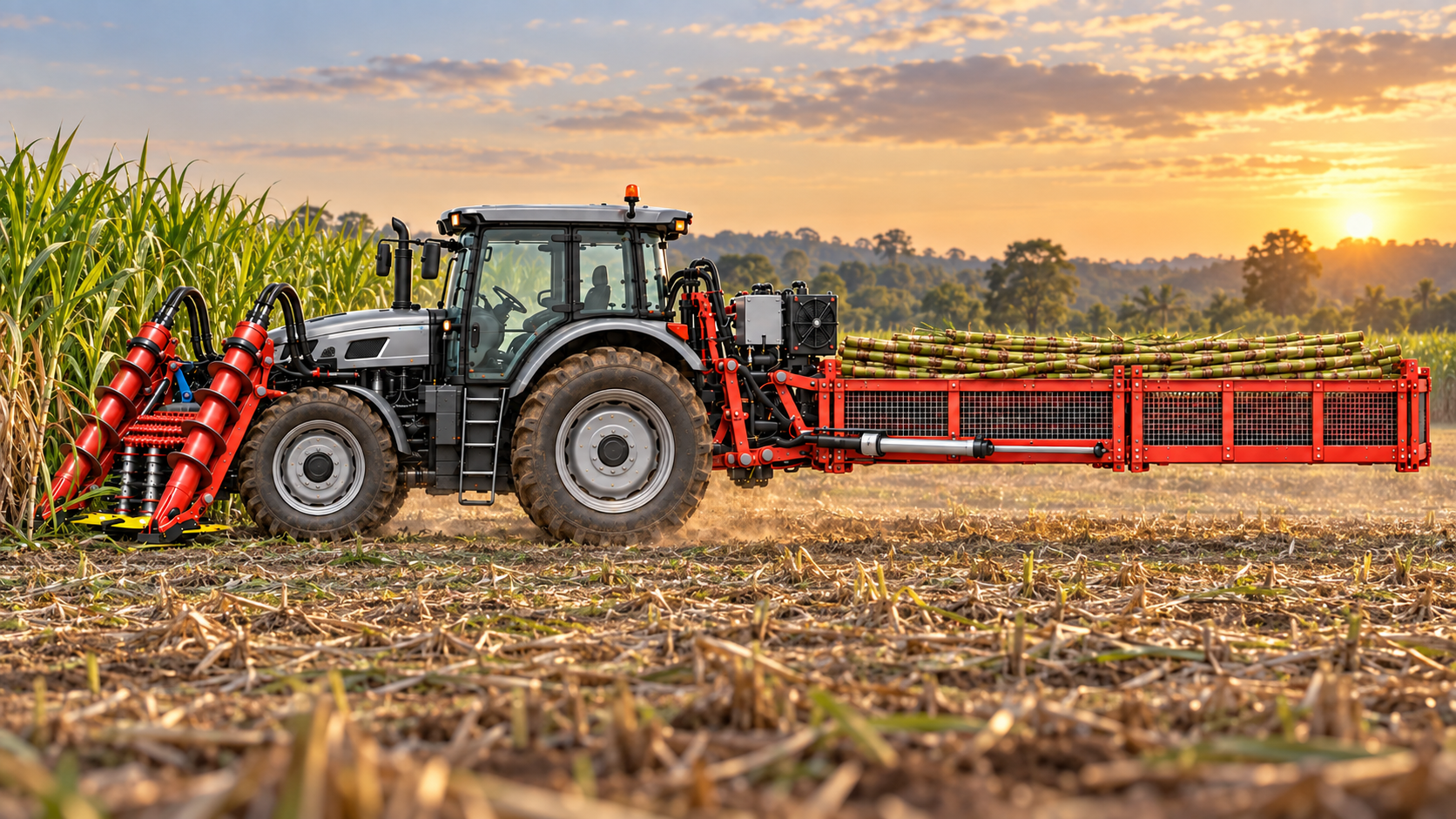

放大 / Enlarge ↗以甘蔗田场景展示整机外观与预期使用环境，为设计效果图。A concept illustration placing the machine in a sugarcane field to communicate its intended working environment.
